| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Frequency | 1 KHz |
| Power | 3 Kw |
| Energy Conversion Efficiency | 85 % minimum |
| Click to view more | |
Product Details
Output Regulation
Voltage, Power or Current
Regulation Accuracy
+ 2 % With line Variation
Input Power Factor
0 to 100 % output.
Type

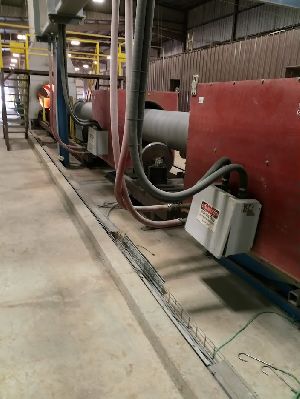

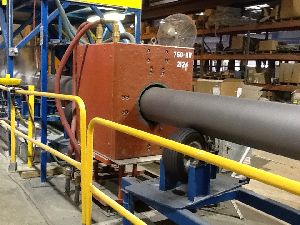

Induction Pipe Heating System
Quench Re Circulating System
Distilled Water Re Circulating System, Stainless Steel Quench Water Tank, Water To Save S.S. Heat Exchanger, Centrifugal Mono-block Pump, Basket Filter With Magnetic Separator, Quench Water Temperature & Pressure Gauges, Non-ferrous Plumbing
Features/Benefits :
- Thyristorised / IGBT Power supply unit.
- RS-232 / RS-485 interface for computer monitoring and control.
- Single control Board.
- Heating time can be controlled by PLC / CNC.
- Heat level can be controlled by remote potentiometer
Scanner Assembly Features :
- Scanning facility : 300mm, 600mm, 1000mm, 2000mm upto 4000mm
- Vertical scanner is with rolled ball screw THK Japan/equivalent.
- Top tooling nib is lifted by manual lever.
- Manual adjustment of tooling to accommodate different length of parts.
- Scanner is with balance counter weight for smooth operation.
Quench Re circulating System :
- Distilled Water Re circulating System
- Stainless steel Quench water tank.
- Water to save S.S. Heat exchanger.
- Centrifugal mono-block pump.
- "Basket filter" with Magnetic separator.
- Quench water temperature & pressure gauges.
- Non-ferrous plumbing.
Frequency Vs Hardness case depth
| Frequency (kHz) | Case Depth (mm) |
| 0.05-1 | 9-17 |
| 3 | 5-10 |
| 6-10 | 2.5-6 |
| 30 | 1.5-3.5 |
| 50 | 0.8-2 |
